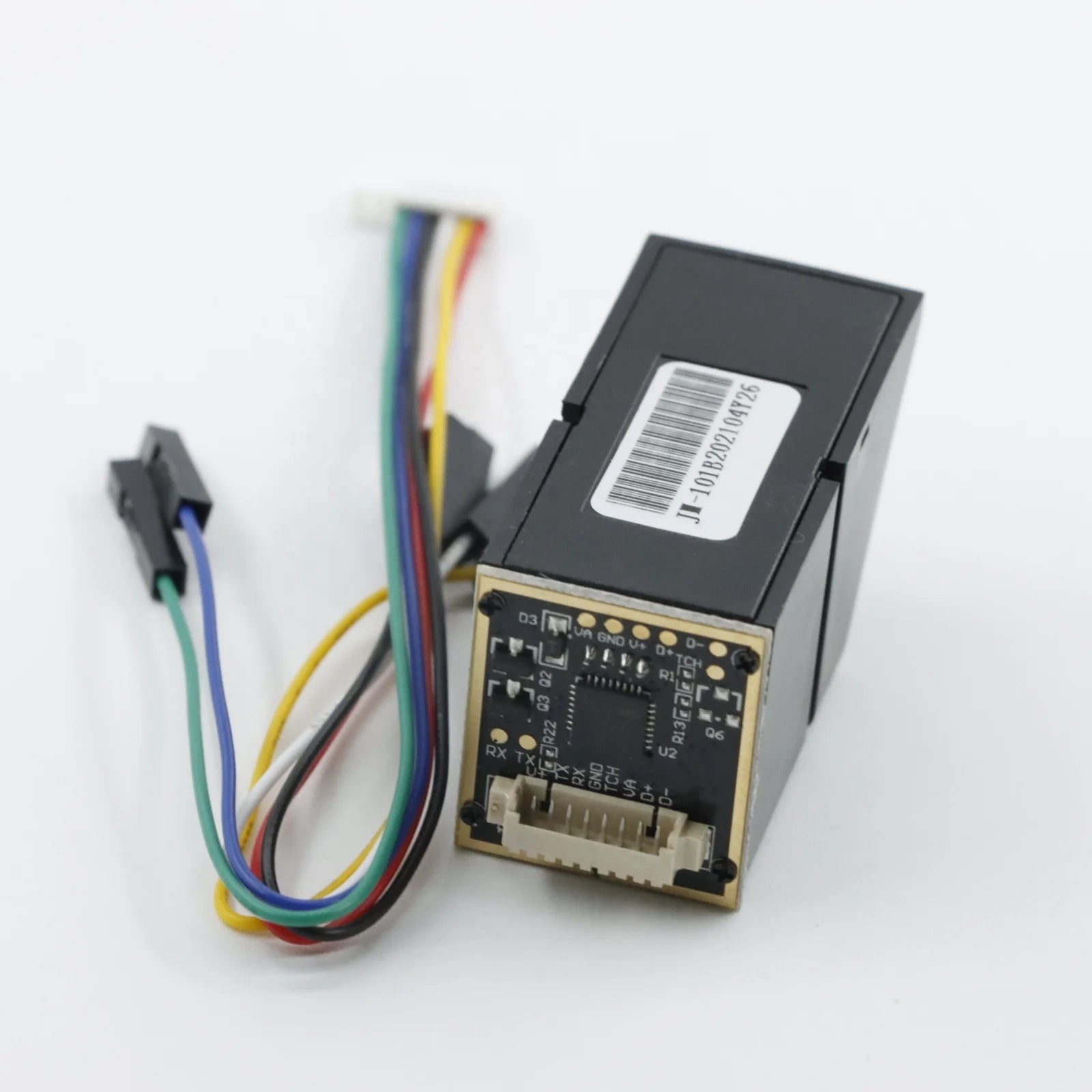

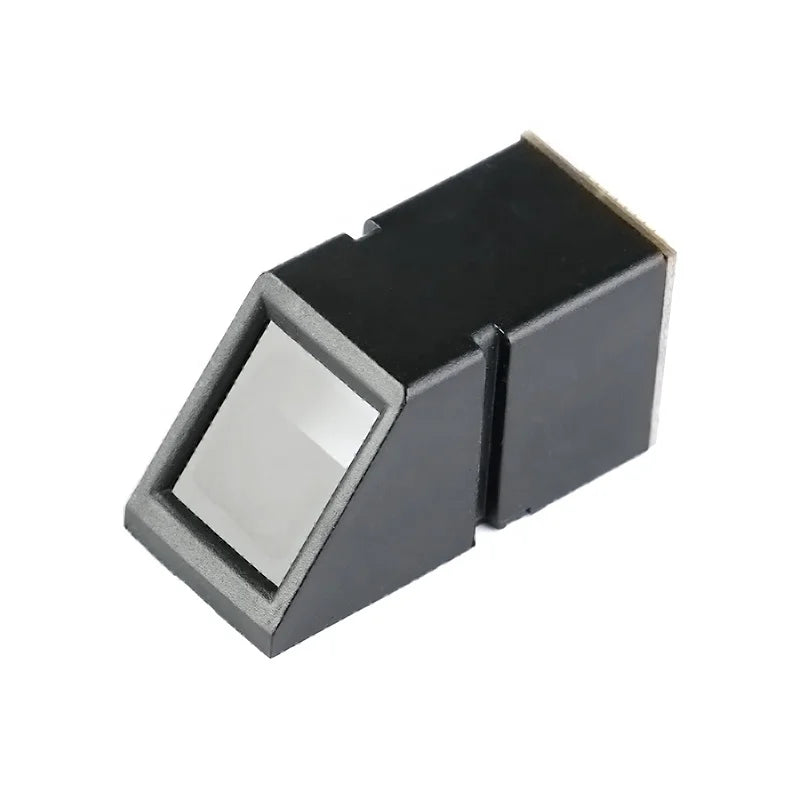

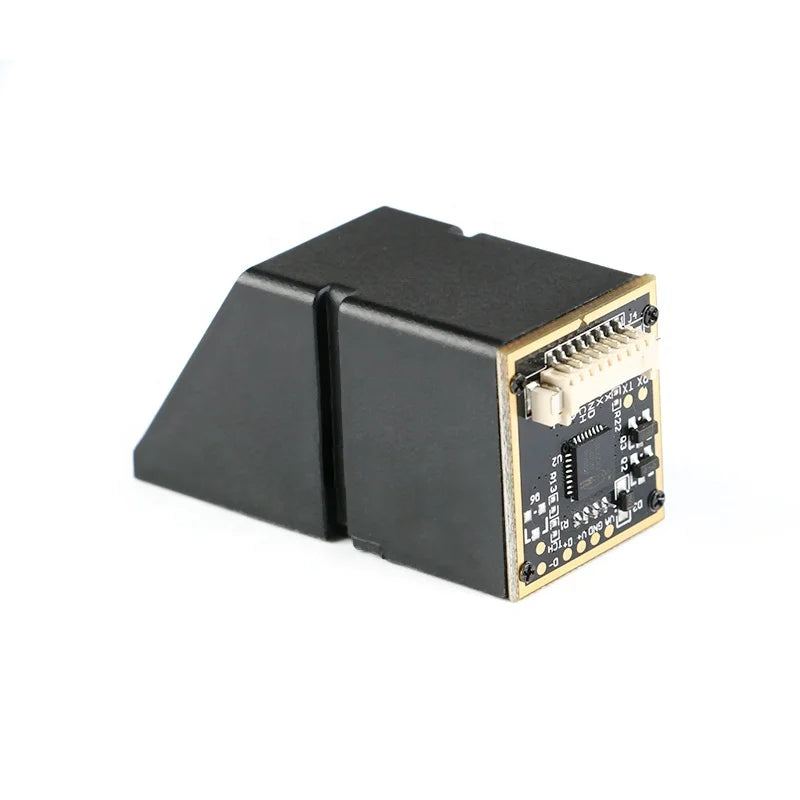

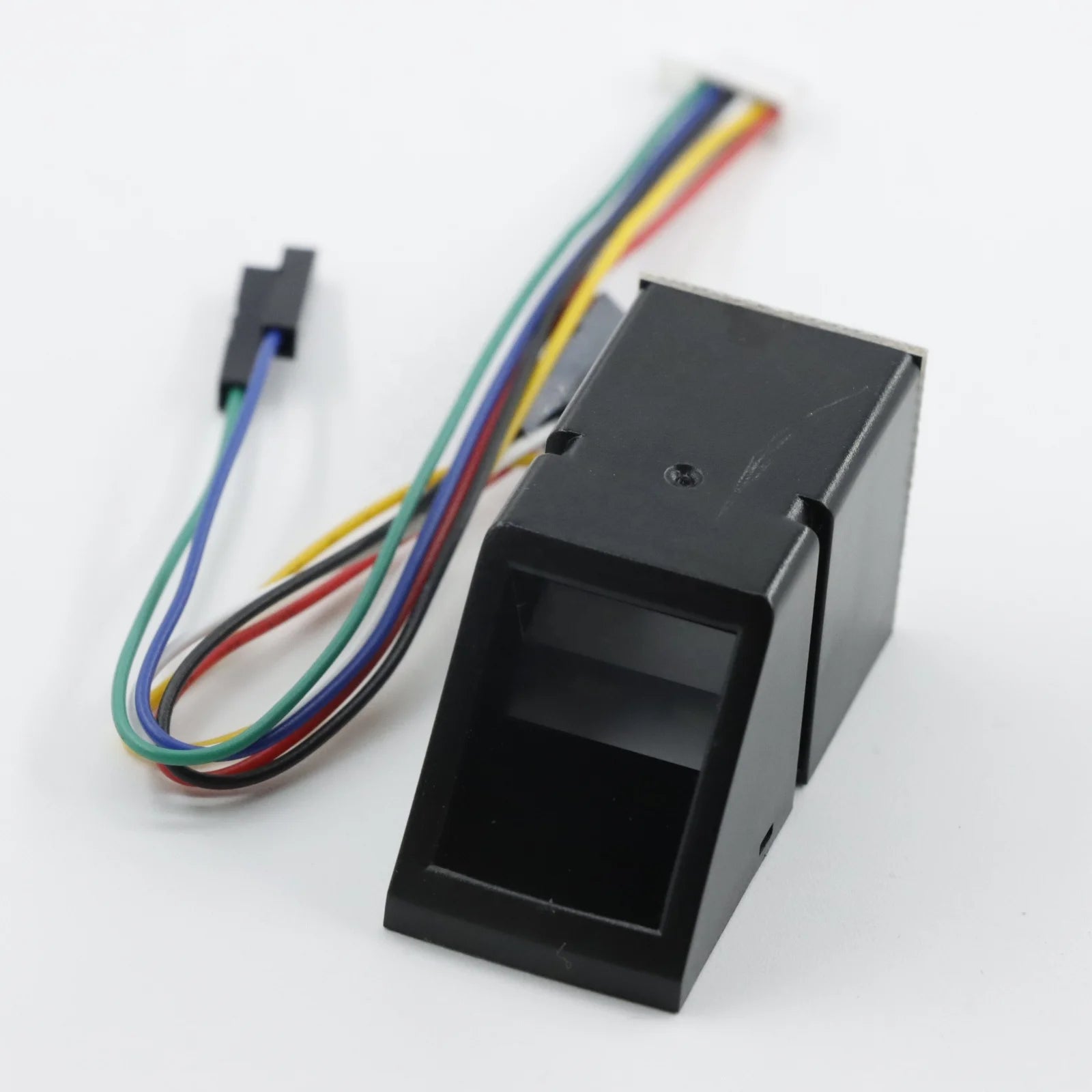

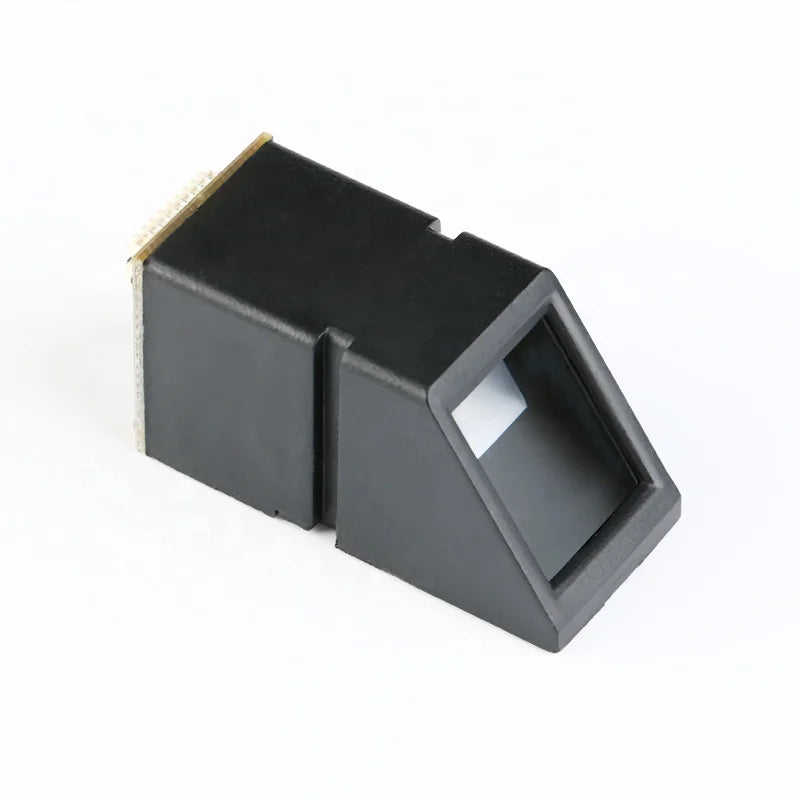

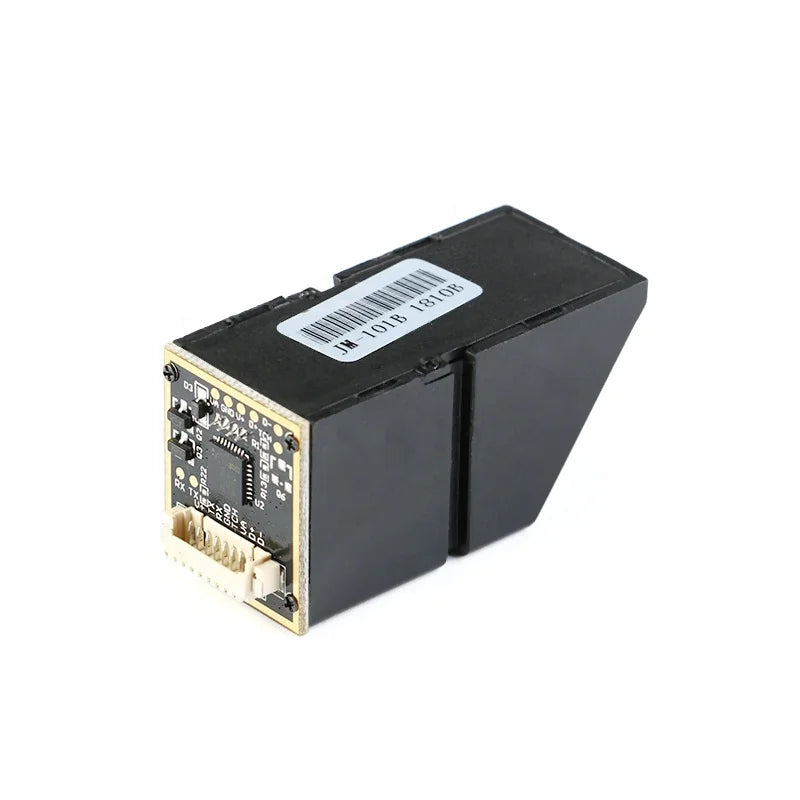

Optical Fingerprint Identification Module Fingerprint Reader Sensor Module Fingerprint Acquisition for STM32 51 MCU AS608

AS608 module

$6.50

$6.50 $6.50

Optical Fingerprint Identification Module Fingerprint Reader Sensor Module Fingerprint Acquisition for STM32 51 MCU AS608

$6.50

$6.50 $6.50

SPECIFICATIONS

Brand Name: EC-Buying

Condition: 100% Original Brand

Functional Application: -

Model Number: 66318

Operating voltage: 3.0~3.6V

Place of Origin: Guangdong, China

Product Name: AS608

Service: One Stop Bom Service

Product Description

Specification

Type	Sensor Module
Place of Origin	China
	Guangdong
Brand Name	EC-Buying
Product Name	AS608
Operating voltage	3.0~3.6V
Condition	100% Original Brand
Lead time	3-5 Days
Service	One Stop Bom Service

Product Parameters
Resolution: 500dpi
Supply current: <60mA
Supply voltage: 3.3V
Fingerprint image entry time: <1.0 seconds
Peak current: <60mA

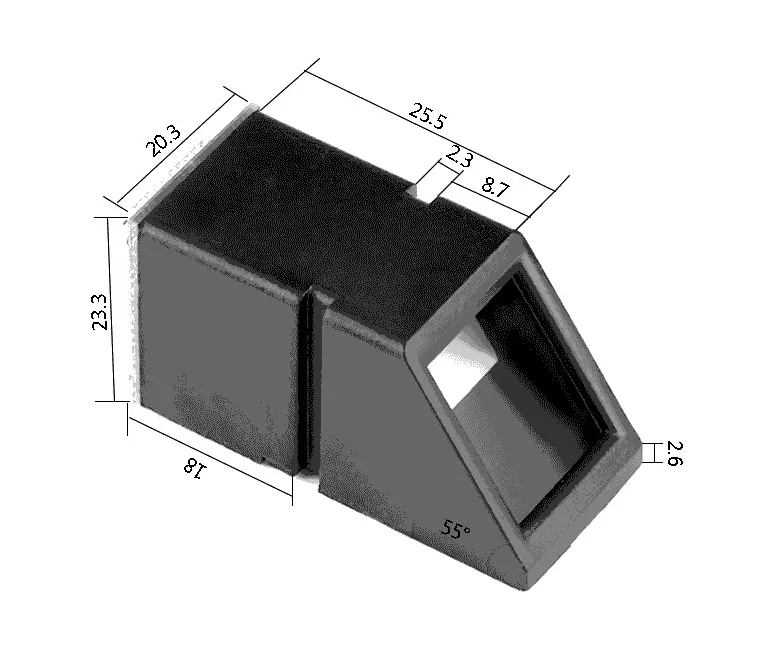

Window area: 15.3x18.2MM
Communication Interface: USB/UART

How the Module Works
1. Fingerprint features
The fingerprint algorithm extracts features from the acquired fingerprint image and represents the fingerprint information. The storage, comparison and search of fingerprints are all done by operating fingerprint features.
2. Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (in which fingerprint matching is divided into fingerprint comparison (1:1) and fingerprint search (1:N) two ways).

When the fingerprint is registered, two fingerprints are entered for each fingerprint, and the input image is processed twice. The synthesis module is stored in the module.
When the fingerprint is matched, the fingerprint sensor is used to input the fingerprint image to be verified and processed, and then it is compared with the fingerprint module in the module (if it is matched with a module specified in the module, it is called fingerprint comparison mode, ie, 1:1 mode. If matching with multiple modules is called fingerprint search, ie 1:N mode, the module gives the matching result (pass or fail).
