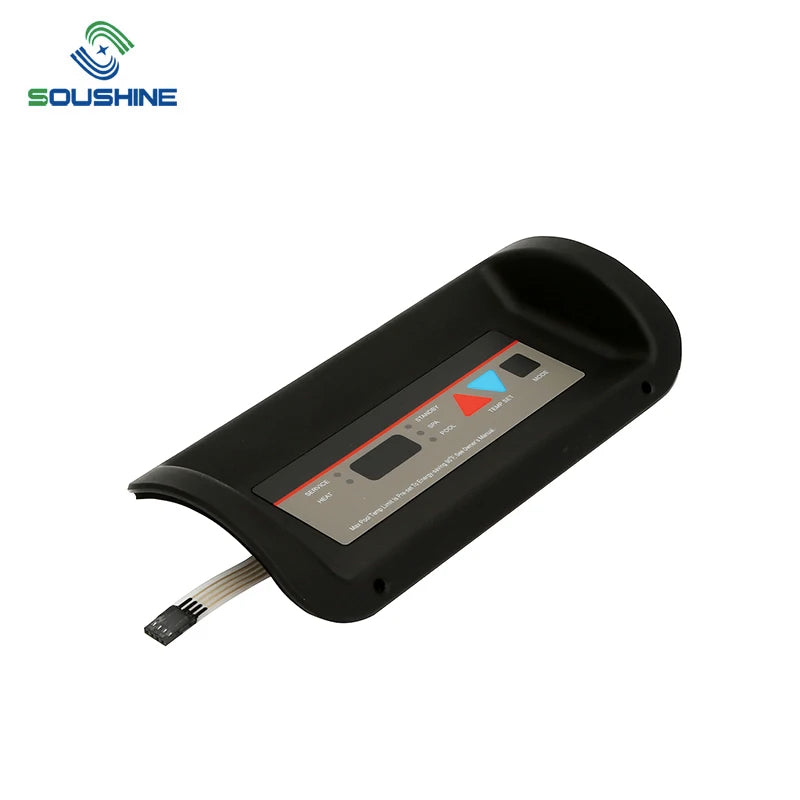

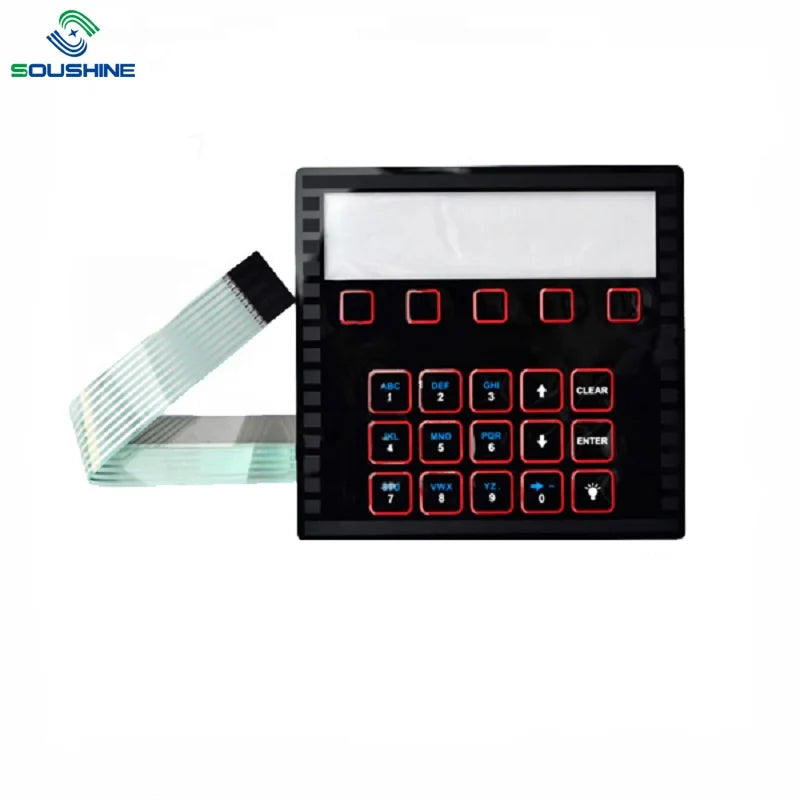

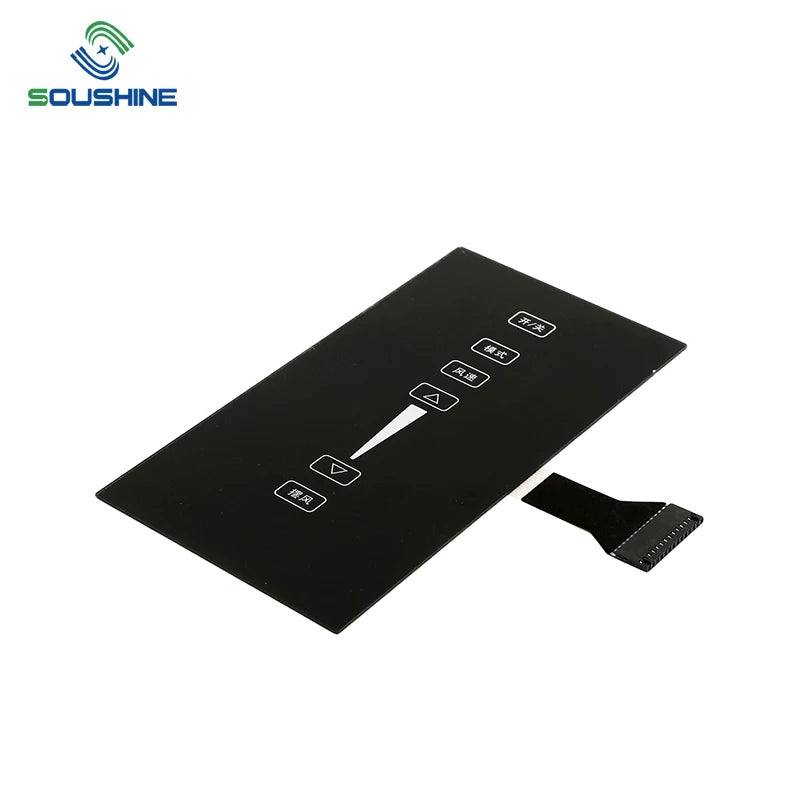

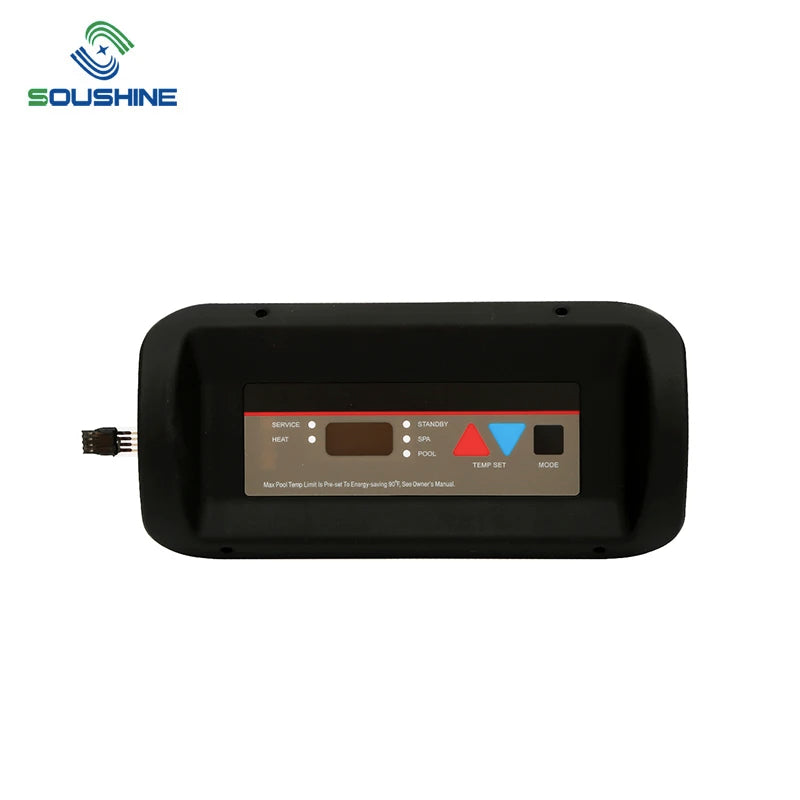

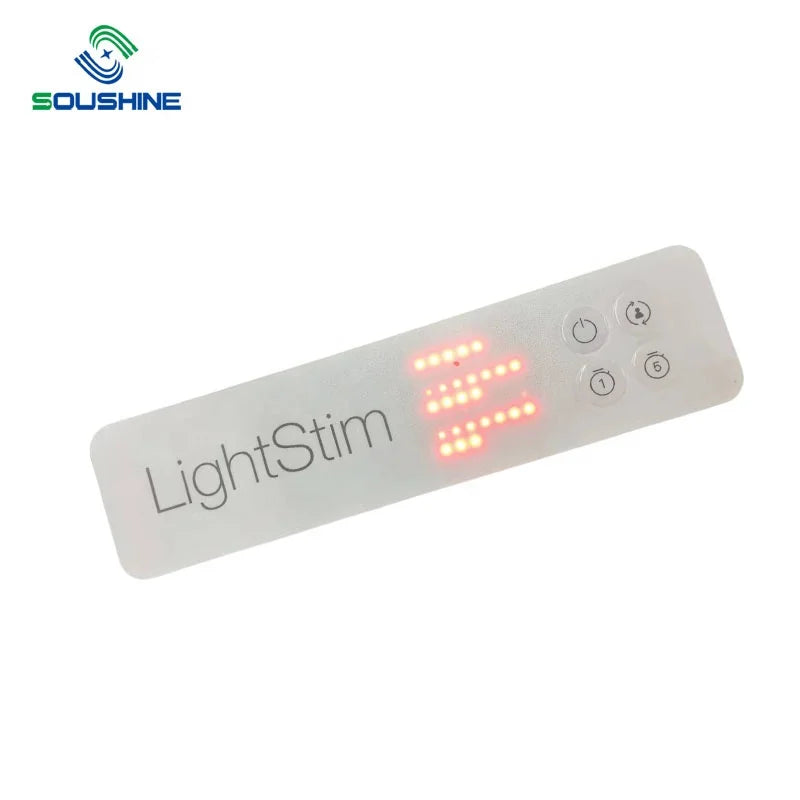

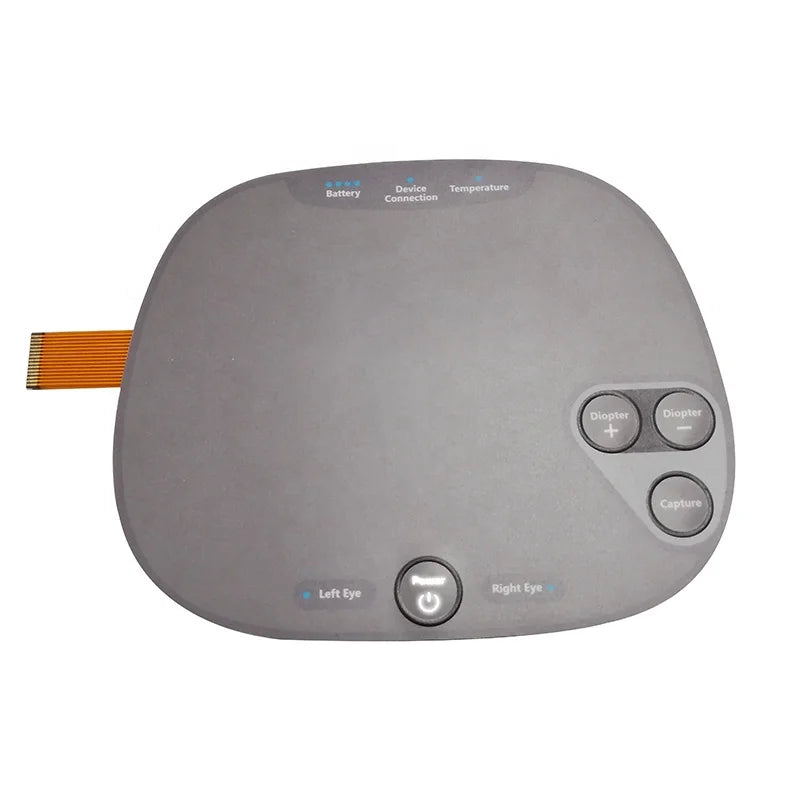

Membrane Keyboard Switch
Green / NH
$0.30
Sale price
$0.30
Regular price
$0.30
Skip to product information
1、Cheap and cost-effective
1、High temperature resistance
1、Adjustable touch of buttons
Membrane Keyboard Switch
$0.30
Sale price
$0.30
Regular price
$0.30
SPECIFICATIONS
Application: Telecommunication Equipment
Brand Name: NH
Cross Reference: PET PC
Keypad Button Material: Other
Model Number: NH-001
Place of Origin: Guangdong, China
Type: Membrane keyboard
nh: membrane switch
Wholesale Price Matrix Membrane Smart Switch With Ied Waterproof Panel Membrane Switch Keyboard
Products Description
Membrane Switch With aluminumback support
six layers:
graphic overlay
Total thickness rang from 0.6-0.8mm
six layers:
graphic overlay
Total thickness rang from 0.6-0.8mm
Overlay Material |
PET, PC, EBG180, EGA180, Glass, Acrylic |
Artwork Format |
CorelDraw, AI, CAD, CDR, PDF |
Color |
Pantone and RALcolor matching system |
Button options |
Tactile: metal dome, poly dome, silicone button |
Non-tactile: flat button, printed silver spot on the circuit |
|
Connector |
ZIF connector: 0.5mm, 1.0mm, 1.25mm pitch |
Female connector with 2.54mmpitch |
|
Circuit option |
Silver printed conductive inks, FPC, PCB |
Printing |
Screen printing, Semi-Auto matic printing, Automatic Printing |
Window |
Transparent, translucent red/black/white etc window |
Surface |
Glossy surface or matte surface |
Rear Adhesive |
3M467,3M468, 3M9448MP, 3M300LSE, 3M93420 etc. |
Certificate |
ISO9001、RoHS、CE、TUV |
Circuit level |
35V (DC), 100mA, 1W |
Contact resistance |
10 Ω~ 500 Ω (varies according to the length and material of outgoing |
Insulation impedance |
100M Ω 100V |
Dielectric withstand voltage |
no breakdown or flashover after 250V RMS (50-60Hz 1min) test |
Contact jitter time |
≤5ms |
Service life |
plane type ≥5 million times |
Touch type |
≥1 million times |
Operating pressure |
plane type 57~ 284g (2 ~ 10oz) |
Tactile type |
170-397g (6-14oz) |
Switch stroke |
plane type 0.1~ 0.5mm |
1、Cheap and cost-effective2、Adjustable touch of buttons
3、Easy to clean and lightweight
4、The button can be used for glue dripping process
.
1、High temperature resistance2. Waterproof and UV resistant
3. Long service life, good pressure resistance and anti breakdown
1、Adjustable touch of buttons2、High lifespan
3、Laser with backlight effect
4、Imported raw materials and accessories
Recommend products
company strength
About us
Established in 2008, Dongguan soushine Industrial Co., Ltd. is a technology company integrating design, research and development, production and sales. It covers an area of 4000 square meters and has two production workshops. After more than 20 years of development, we have a strong R & D technology and production capacity, the main products are: film switch, touch switch, film pressure sensor, graphic cover, panel and so on. These products are widely used in communication, industrial control, medical equipment, automobiles, instruments, smart home and toys, automatic control systems and other high-tech fields. Our partners are Haier, Midea, Huawei, Panasonic and other well-known enterprises. The company has more than 100 employees, more than 300 equipment, 10 production lines. And passed ISO9001:2015, RoHS, ZHB environmental system certification, is a national high-tech enterprise.
FAQ
Q1. What information will I have to provide for price?
To offer the exact price, we hope customers could inform us the material,specification as thickness, size, with adhesive or not, how many colors for printings, contact details, quantity required, Size and Shape with artwork files.
Q3. Can you do the design for us?
Yes.
There ate many professional engineer having rich experience in graphic overlays& circuit designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.
Q4. How about your delivery time?
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass goods will be completed in 10 days.The specific delivery time depends on the items and the quantity of your order.
Q2. What is the production time?
(1)Custom sample: About 7 days.
(2)Mass production: About 2--3 weeks
(1)Custom sample: About 7 days.
(2)Mass production: About 2--3 weeks
Q3. Can you do the design for us?
Yes.
There ate many professional engineer having rich experience in graphic overlays& circuit designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.
Q4. How about your delivery time?
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass goods will be completed in 10 days.The specific delivery time depends on the items and the quantity of your order.
