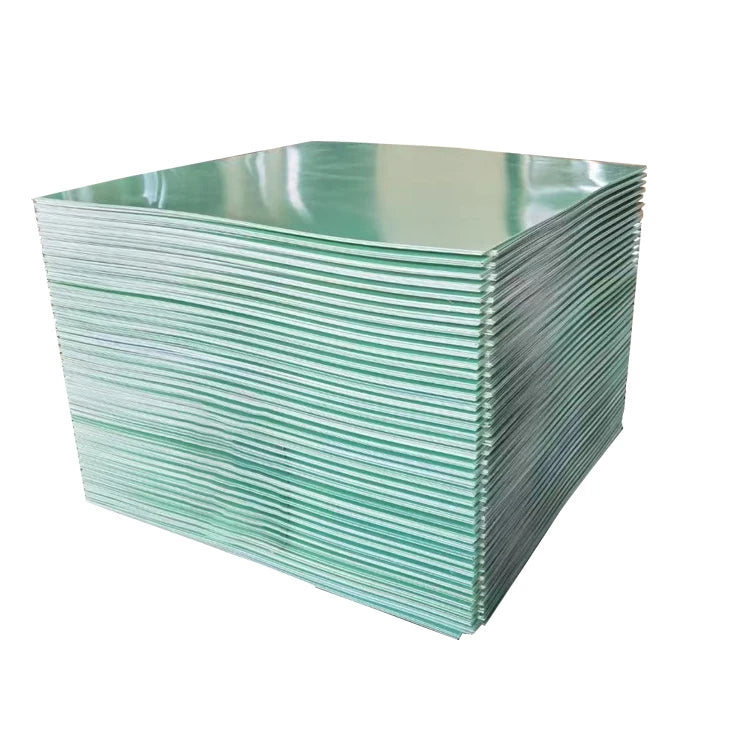

16mm Craft Engraving FR4 CCL High Voltage Fiberglass Insulation Sheets 0.03mm G10 PCB Sheet Fire Resistant ROHS Certified
A4 Size sample
$4.50
Sale price
$4.50
Regular price
$4.50
Skip to product information
16mm Craft Engraving FR4 CCL High Voltage Fiberglass Insulation Sheets 0.03mm G10 PCB Sheet Fire Resistant ROHS Certified
$4.50
Sale price
$4.50
Regular price
$4.50

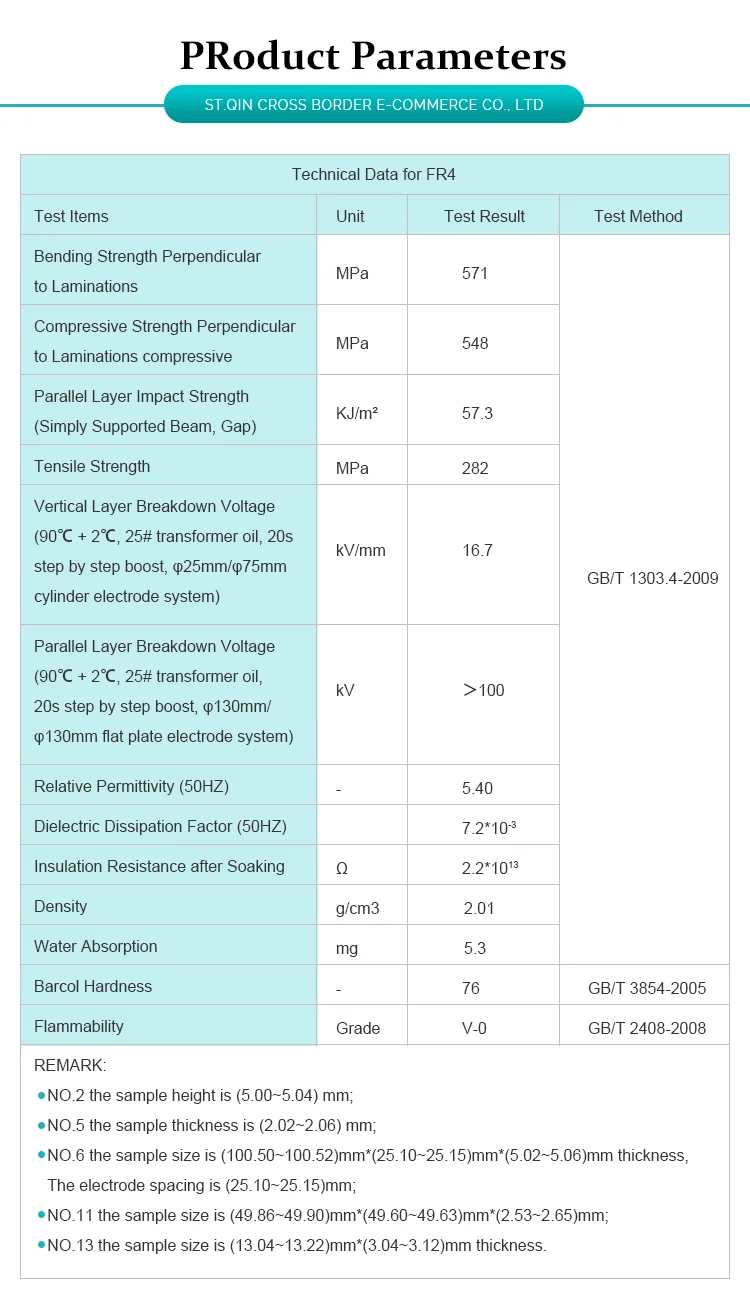

SPECIFICATIONS
Advantage: Excellent Insulation Properties
Application: High Voltage
Brand Name: JingHong

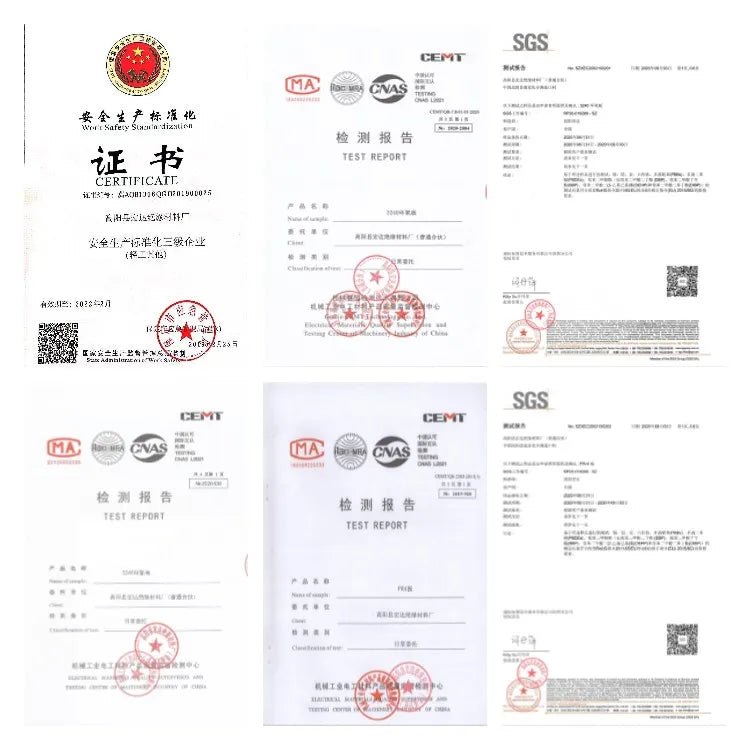

Certification: ROHS
Color: Green
Feature: Fire Resistant
Flammability: V-0
Material: Fiberglass
Model Number: FR4
Place of Origin: China
Product name: Fr4 Sheet
Rated Voltage: >22KV
Sample: Freely Supplied
Size: Sample:29.7cm*23cm*0.1cm
Tensile Strength: 282MPA
Thickness: 0.1-100mm
Type: Insulation Sheet
Usage: Electrical Insulation Protection
Related Products
 |
 |
 |
Custom Size Fiberglass Fr4 Sheet |
Phenolic Cotton Cloth Sheet |
3240 Epoxy Glass Fiber Laminated Insulation Sheet |
JingHong 16mm Craft Engraving Fr4 CCL Sheets 03mm Fr4 G10 Sheet Pcb Fr4 Sheets
Product Description
FR4 is a code for the grade of fire-resistant material, which means that the resin material must be able to extinguish itself after burning. It is not a material name, but a material grade. Therefore, there are many kinds of FR4 materials used for general circuit boards, But most of them are composites made of so-called Tera Function epoxy resin, filler and glass fiber.
FR4 epoxy glass cloth laminate is generally called FR4 epoxy glass cloth, insulating board, epoxy board, epoxy resin board, brominated epoxy resin board, FR4, glass fiber board, glass fiber board, FR4 reinforcement board, FPC reinforcement board, flexible circuit board reinforcement board, FR4 epoxy resin board, flame-retardant insulation board, FR4 laminate, epoxy board, FR4 optical board, FR4 glass fiber board, epoxy glass cloth board Epoxy glass cloth laminate, PCB drilling pad.
Main technical features and applications: stable electrical insulation performance, good flatness, smooth surface, no pits, thickness tolerance standard, suitable for products with high-performance electronic insulation requirements, such as FPC reinforcement board, PCB drilling pad, glass fiber meson, potentiometer carbon film printed glass fiber board, precision planetary gear (wafer grinding), precision test plate, electrical (electrical) equipment insulation brace partition, insulation pad, transformer insulation board Motor insulation parts, grinding gears, electronic switch insulation plates, etc.
Packaging & Shipping
| Packaging | Regular packing, Protect by Pallet |
| Delivery Port | Tianjin |
| Delivery Time | 7-15 working days |
Our Services

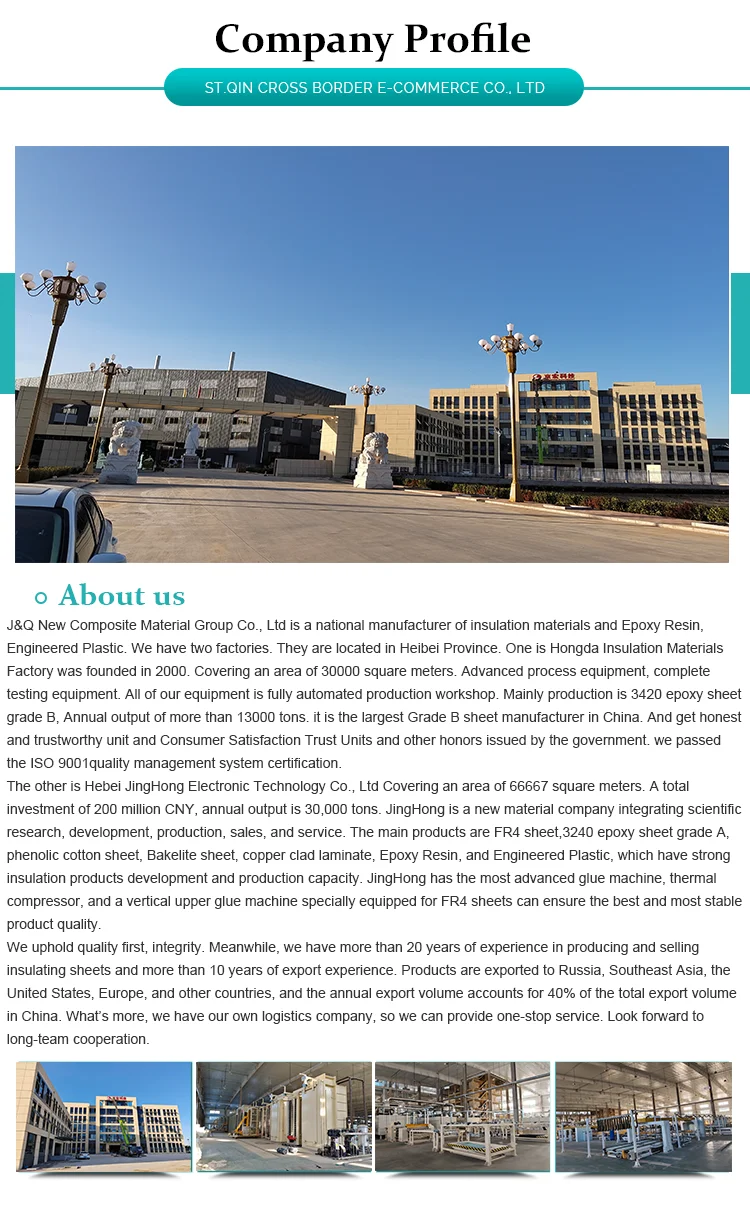

Company Information
